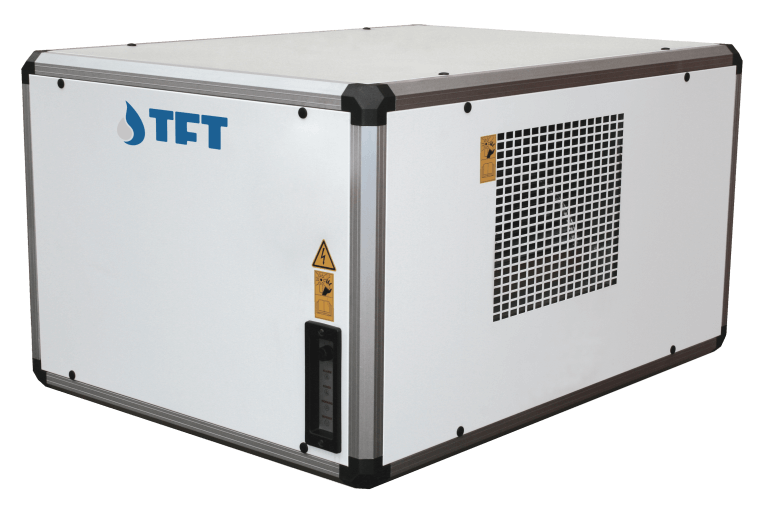

CD/CDP 160 – 980 Duct Type Industrial Dehumidifier
The CD series condensation dehumidifiers offer high-performance humidity control solutions for a wide range of applications. These devices are effectively used in industrial environments, hotels, swimming pools, archives, and storage areas, combining high efficiency and durability. Designed to prevent the negative effects of high humidity levels, the CD series efficiently removes excess moisture from the air, helping to protect buildings, furniture, and equipment.
The CD series condensation dehumidifiers have a robust and long-lasting structure. Their galvanized steel body with epoxy coating ensures resistance to corrosion and reliable performance even in harsh environmental conditions. The evaporator and condenser systems used in the cooling circuit offer high moisture removal capacity, providing maximum efficiency with minimal energy consumption. With models available in different capacities, these devices can be adapted to small spaces as well as large industrial facilities, making them suitable for various needs.
The dual-condenser design enhances the device's ability to manage heat and humidity, optimizing energy efficiency. Unlike conventional dehumidifiers, the CD series first balances the ambient temperature before starting the dehumidification process. During this stage, the refrigerant circulating in the system is directed to an external condenser placed outside. Once the temperature balance is achieved, the refrigerant is then directed to the internal condenser to reduce the humidity level. This process ensures a more stable and comfortable environment, preventing sudden temperature fluctuations during humidity control. This technology is particularly beneficial for indoor swimming pools, production facilities, hotels, and large pharmaceutical raw material storage areas, where precise temperature and humidity control is essential.
The CD series condensation dehumidifiers' ability to control temperature first and then regulate humidity helps protect products and equipment in industrial processes, extend the lifespan of stored materials, and maximize comfort levels in commercial areas. This advanced technology provides a significant advantage in high-precision applications, making the CD series stand out as a leading solution in the industry.
CD-160
| Dehumidification capacity at 32°C 90% | 160,0 L/24h |
| Dehumidification capacity at 30°C 80% | 126,0 L/24h |
| Dehumidification capacity at 27°C 80% | 82,0 L/24h |
| Dehumidification capacity at 27°C 60% | 70,0 L/24h |
| Dehumidification capacity at 20°C 60% | 48,0 L/24h |
| Air flow | 1800 m3/h |
| Power Supply | 230/1+N/50 Volt/Ph/Hz |
| Maximum absorbed power | 2,5 KW |
CD-240
| Dehumidification capacity at 32°C 90% | 240,0 L/24h |
| Dehumidification capacity at 30°C 80% | 188,0 L/24h |
| Dehumidification capacity at 27°C 80% | 135,0 L/24h |
| Dehumidification capacity at 27°C 60% | 103,0 L/24h |
| Dehumidification capacity at 20°C 60% | 70,0 L/24h |
| Air flow | 2300 m3/h |
| Power Supply | 400/3+N/50 Volt/Ph/Hz |
| Maximum absorbed power | 4,3 KW |
CD-360
| Dehumidification capacity at 32°C 90% | 360,0 L/24h |
| Dehumidification capacity at 30°C 80% | 300,0 L/24h |
| Dehumidification capacity at 27°C 80% | 230,0 L/24h |
| Dehumidification capacity at 27°C 60% | 170,0 L/24h |
| Dehumidification capacity at 20°C 60% | 140,0 L/24h |
| Air flow | 3500 m3/h |
| Power Supply | 400/3+N/50 Volt/Ph/Hz |
| Maximum absorbed power | 6,0 KW |
CD-520
| Dehumidification capacity at 32°C 90% | 520,0 L/24h |
| Dehumidification capacity at 30°C 80% | 440,0 L/24h |
| Dehumidification capacity at 27°C 80% | 340,0 L/24h |
| Dehumidification capacity at 27°C 60% | 250,0 L/24h |
| Dehumidification capacity at 20°C 60% | 170,0 L/24h |
| Air flow | 4600 m3/h |
| Power Supply | 400/3+N/50 Volt/Ph/Hz |
| Maximum absorbed power | 7,7 KW |
CD-750
| Dehumidification capacity at 32°C 90% | 750,0 L/24h |
| Dehumidification capacity at 30°C 80% | 620,0 L/24h |
| Dehumidification capacity at 27°C 80% | 480,0 L/24h |
| Dehumidification capacity at 27°C 60% | 340,0 L/24h |
| Dehumidification capacity at 20°C 60% | 240,0 L/24h |
| Air flow | 6200 m3/h |
| Power Supply | 400/3+N/50 Volt/Ph/Hz |
| Maximum absorbed power | 10,7 KW |
CD-980
| Dehumidification capacity at 32°C 90% | 980,0 L/24h |
| Dehumidification capacity at 30°C 80% | 830,0 L/24h |
| Dehumidification capacity at 27°C 80% | 640,0 L/24h |
| Dehumidification capacity at 27°C 60% | 470,0 L/24h |
| Dehumidification capacity at 20°C 60% | 320,0 L/24h |
| Air flow | 8500 m3/h |
| Power Supply | 400/3+N/50 Volt/Ph/Hz |
| Maximum absorbed power | 13,7 KW |
